# 简单的图像评估区块
    def imshow(img):
        img = img / 2 + 0.5 # 反标准化
        npimg = img.numpy()
        plt.imshow(np.transpose(npimg, (1, 2, 0)))
        plt.show()
    data_iter = iter(testloader)
    images, labels = next(data_iter)
    show_images = 8
    images_to_show = images[:show_images]
    labels_to_show = labels[:show_images]
    print('GroundTruth: ', ' '.join(f'{classes[labels_to_show[j]]:5s}' for j in range(show_images)))
    # 使用已持久化模型进行评估
    model = Net()
    model.load_state_dict(torch.load(PATH, weights_only=True))
    # 预测标签
    with torch.no_grad():
        outputs = model(images_to_show)
        _, predicted = torch.max(outputs, 1)
    print('Predicted: ', ' '.join(f'{classes[predicted[j]]:5s}' for j in range(show_images)))
    imshow(torchvision.utils.make_grid(images_to_show))

    correct_pred = {classname: 0 for classname in classes}
    total_pred = {classname: 0 for classname in classes}

    with torch.no_grad():
        for data in testloader:
            images, labels = data[0].to(device), data[1].to(device)
            outputs = model(images)
            _, predictions = torch.max(outputs, 1)
            # 累加每个类别的准确率计算变量
            for label, prediction in zip(labels, predictions):
                if label == prediction:
                    correct_pred[classes[label]] += 1
                total_pred[classes[label]] += 1

    # print accuracy for each class
    for classname, correct_count in correct_pred.items():
        accuracy = 100 * float(correct_count) / total_pred[classname]
        print(f'Class: {classname:5s} Accuracy: {accuracy:.1f} %')

def collect_pred_labels(model, dataloader, device):
    """
    遍历 Dataloader，收集模型的所有预测结果和真实标签
    :param model: 模型
    :param dataloader: 数据加载器
    :param device:
    :return:
        labels:numpy, preds:numpy
    """
    labels = torch.tensor([],device=device)
    preds = torch.tensor([],device=device)
    with torch.no_grad():
        for X, y in dataloader:
            X,y = X.to(device), y.to(device)
            output = model(X)
            predicts = output.argmax(dim=1, keepdim=True)

            # 拼接当前批次的预测值和标签到列表里
            labels = torch.cat((labels,y),dim=0)
            preds = torch.cat((preds,predicts),dim=0)
    # 直接返回 numpy并转移到cpu上，方便后续 seaborn绘图
    return labels.cpu().numpy(), preds.cpu().numpy()

def plot_confusion_matrix(cm, class_names,title='Confusion matrix'):
    """
    使用seaborn绘制混淆矩阵
    """
    plt.figure(figsize=(10,8))
    sns.heatmap(cm,annot=True,fmt='d',cmap='Blues',
                xticklabels=class_names,yticklabels=class_names)
    plt.title(title)
    plt.ylabel('True label')
    plt.xlabel('Predicted label')
    plt.tight_layout()
    plt.show()

import pandas as pd
import torch
import torch.nn as nn
import torch.optim as optim
import torchvision
from torchvision import transforms
from torch.utils.data import DataLoader, random_split, Dataset
import matplotlib.pyplot as plt
import seaborn as sns
import numpy as np
import torch.nn.functional as F

def get_dataloader_workers():
    """使用 4 个进程读取数据"""
    return 4

class Net(nn.Module):
    def __init__(self):
        super().__init__()
        # 初始输入: [B, 3, 32, 32]
        # 第1个卷积块
        self.conv1 = nn.Conv2d(3, 16, 3, padding=1) # 输出: [B, 16, 32, 32]
        self.pool1 = nn.MaxPool2d(2, 2)             # 输出: [B, 16, 16, 16]

        # 第2个卷积块
        self.conv2 = nn.Conv2d(16, 32, 3, padding=1) # 输出: [B, 32, 16, 16]
        self.pool2 = nn.MaxPool2d(2, 2)              # 输出: [B, 32, 8, 8]

        # 第3个卷积块
        self.conv3 = nn.Conv2d(32, 64, 3, padding=1) # 输出: [B, 64, 8, 8]
        self.pool3 = nn.MaxPool2d(2, 2)              # 输出: [B, 64, 4, 4]

        # # 第四个卷积块
        # self.conv4 = nn.Conv2d(64, 128, 3, padding=1) # 输出: [B, 128, 4, 4]
        # self.pool4 = nn.MaxPool2d(2, 2)              # 输出: [B, 64, 2, 2]
        #
        # # 第五个卷积块
        # self.conv5 = nn.Conv2d(128, 128, 3, padding=1) # 输出: [B, 256, 2, 2]
        # self.pool5 = nn.MaxPool2d(2, 2)              # 输出: [B, 256, 1, 1]

        # 全连接层
        # 经过 3次池化后，特征图大小为 4x4，通道数为64
        # 因此 flatten后的向量维度是 64 * 4 * 4 = 1024
        # ------------------------------------------
        # 经过 5次池化后，特征图大小为 1x1，通道数为256
        # 因此，flatten后的向量维度是 256
        self.fc1 = nn.Linear(64 * 4 * 4, 256)
        self.fc2 = nn.Linear(256, 128)
        self.fc3 = nn.Linear(128, 10)

    def forward(self, x):
        # 顺序通过卷积块
        x = self.pool1(F.leaky_relu(self.conv1(x)))
        x = self.pool2(F.leaky_relu(self.conv2(x)))
        x = self.pool3(F.leaky_relu(self.conv3(x)))
        # x = self.pool4(F.relu(self.conv4(x)))
        # x = self.pool5(F.relu(self.conv5(x)))

        # 将所有维度展平成一维
        x = torch.flatten(x, 1)

        # 全连接层
        x = F.leaky_relu(self.fc1(x))
        x = F.leaky_relu(self.fc2(x))
        x = self.fc3(x)
        x = F.softmax(x, dim=1)
        return x


def train(model, device, trainloader, loss_function, optimizer, epoches, writer):
    """模型训练"""
    """
    return:
        model trained, history of training loss and training accuracy
    """
    model = model.to(device)

    history = {'train_loss': [], 'train_accuracy': []}

    # 切换为训练模式
    model.train()
    for epoch in range(epoches):

        train_loss = 0.0
        acc_cnt = 0
        for X,y in trainloader:
            # get the inputs; data is a list of [inputs, labels]
            X,y = X.to(device), y.to(device)

            # 清零梯度
            optimizer.zero_grad()
            # 前向传播
            outputs = model(X)
            # 计算loss
            loss = loss_function(outputs, y)
            loss.backward()
            # 更新权重
            optimizer.step()

            train_loss += loss.item()
            acc_cnt += (outputs.argmax(1) == y).type(torch.float).sum().item()

        train_loss = train_loss / len(trainloader)
        accuracy = acc_cnt / len(trainloader.dataset)

        print(f"Epoch [{epoch + 1}/{epoches}] | "
              f"Train Loss: {train_loss:.4f} | "
              f"Train Accuracy: {accuracy:.4f}")

        history['train_loss'].append(train_loss)
        history['train_accuracy'].append(accuracy)

        # 在每个 epoch 结束后，使用 writer 记录 loss 和 accuracy
        # writer.add_scalar(tag, scalar_value, global_step)
        # tag: 图表的标题
        # scalar_value: y轴的值
        # global_step: x轴的值

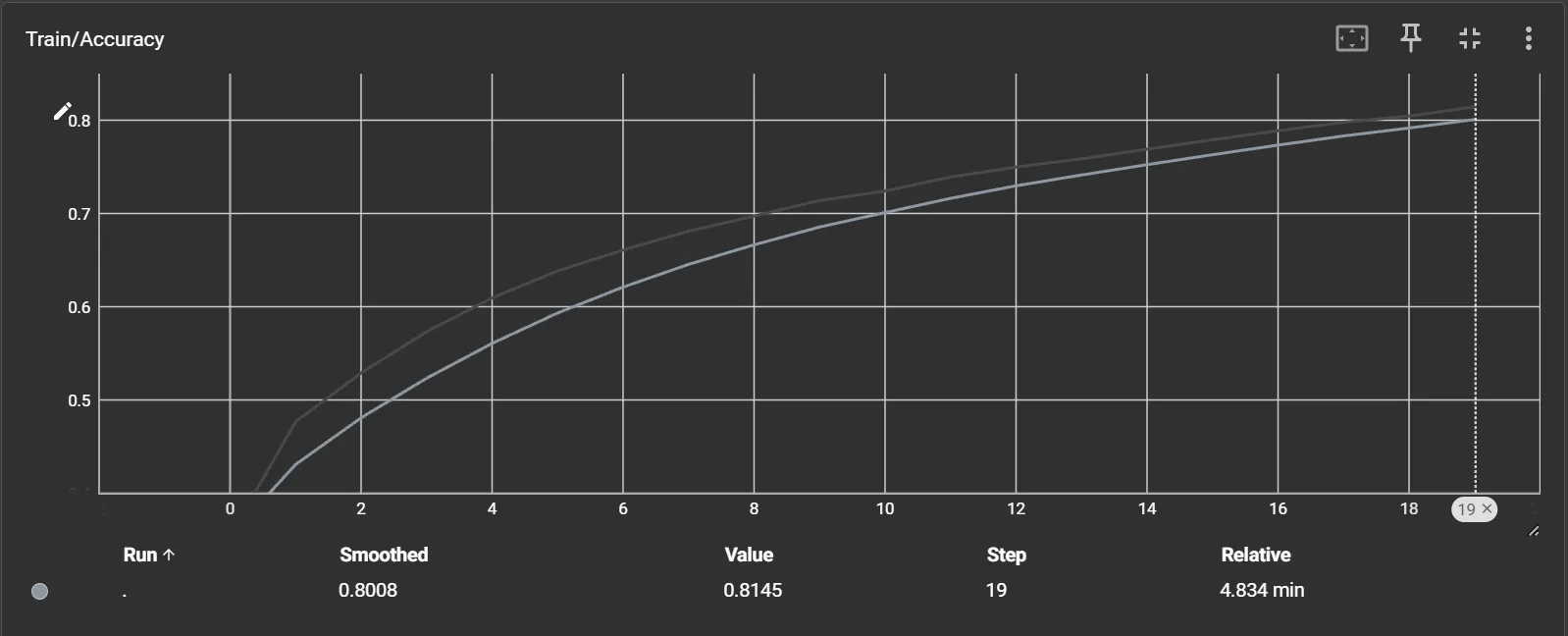

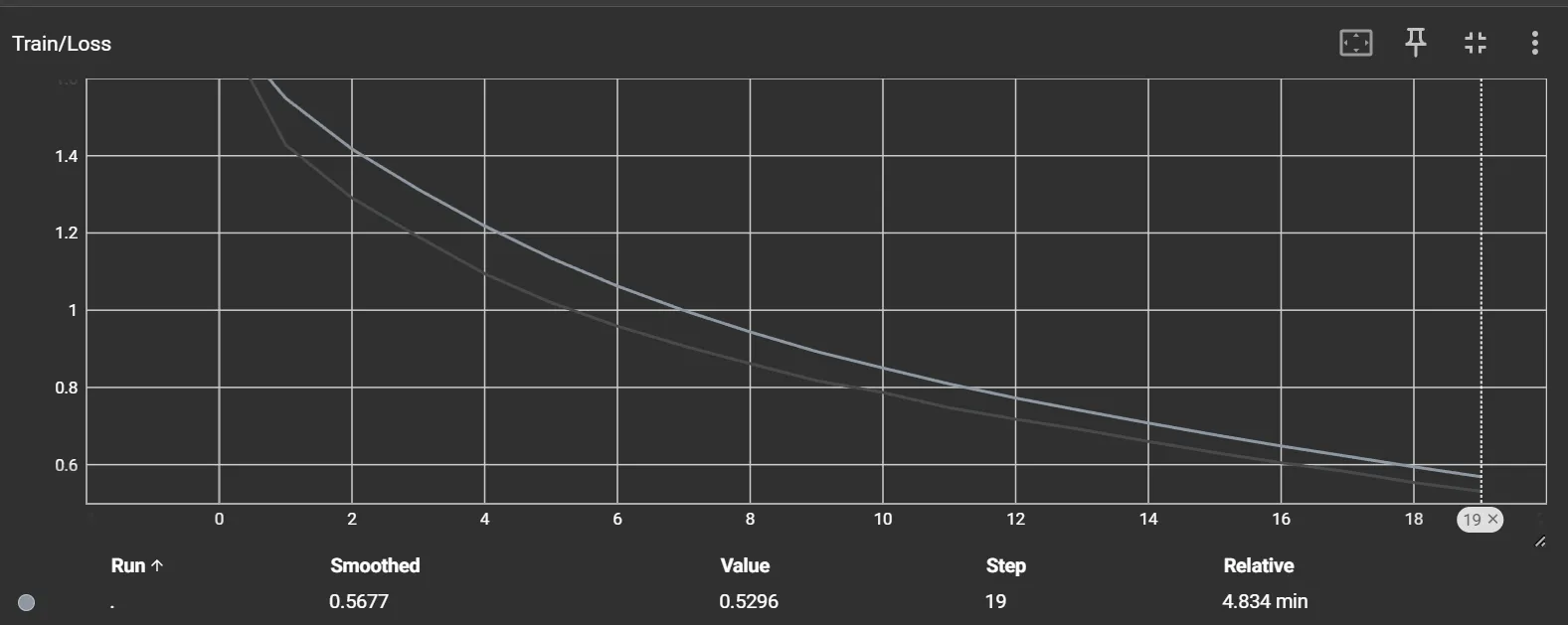

        writer.add_scalar('Train/Loss', train_loss, epoch)
        writer.add_scalar('Train/Accuracy', accuracy, epoch)

    print('训练完毕')

    return model,history


def save_model(model, path):
    torch.save(model.state_dict(), path)
    print('Save Successfully')


def pred_model_in_testset(model, testloader, device):
    """在测试集上评测最终模型性能"""
    model = model.to(device)
    model.eval()

    acc_cnt = 0
    with torch.no_grad():
        for X, y in testloader:
            X,y = X.to(device), y.to(device)
            output = model(X)
            acc_cnt += (output.argmax(1) == y).type(torch.float).sum().item()

    accuracy = acc_cnt / len(testloader.dataset)
    return accuracy


def collect_pred_labels(model, dataloader, device):
    """
    遍历 Dataloader，收集模型的所有预测结果和真实标签
    :param model: 模型
    :param dataloader: 数据加载器
    :param device:
    :return:
        labels:numpy, preds:numpy
    """
    labels = torch.tensor([],device=device)
    preds = torch.tensor([],device=device)
    with torch.no_grad():
        for X, y in dataloader:
            X,y = X.to(device), y.to(device)
            output = model(X)
            predicts = output.argmax(dim=1, keepdim=True)

            # 拼接当前批次的预测值和标签到列表里
            labels = torch.cat((labels,y),dim=0)
            preds = torch.cat((preds,predicts),dim=0)

    # 直接返回 numpy并转移到cpu上，方便后续 seaborn绘图
    return labels.cpu().numpy(), preds.cpu().numpy()


def plot_confusion_matrix(cm, class_names, img_name, title='Confusion matrix'):
    """
    使用seaborn绘制混淆矩阵
    """
    plt.figure(figsize=(10,8))
    sns.heatmap(cm,annot=True,fmt='d',cmap='Blues',
                xticklabels=class_names,yticklabels=class_names)
    plt.title(title)
    plt.ylabel('True label')
    plt.xlabel('Predicted label')
    plt.tight_layout()
    plt.savefig(f'{img_name}_CM.png',dpi=300)
    plt.show()


def display_confusion_matrix(PATH):
    # ========= 绘制训练集和验证集的混淆矩阵 ==============

    batch_size = 256

    # 数据加载区块
    trainset = torchvision.datasets.CIFAR10(root='./data', train=True,
                                            download=True, transform=transform)
    testset = torchvision.datasets.CIFAR10(root='./data', train=False,
                                           download=True, transform=transform)
    # shuffle = False 以保持顺序
    trainloader = torch.utils.data.DataLoader(trainset, batch_size=batch_size,
                                              shuffle=False, num_workers=get_dataloader_workers())
    testloader = torch.utils.data.DataLoader(testset, batch_size=batch_size,

                                             shuffle=False, num_workers=get_dataloader_workers())
    classes = ('plane', 'car', 'bird', 'cat',
               'deer', 'dog', 'frog', 'horse', 'ship', 'truck')

    model = Net()
    model.load_state_dict(torch.load(PATH, weights_only=True))
    device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
    model.to(device)

    from sklearn.metrics import confusion_matrix

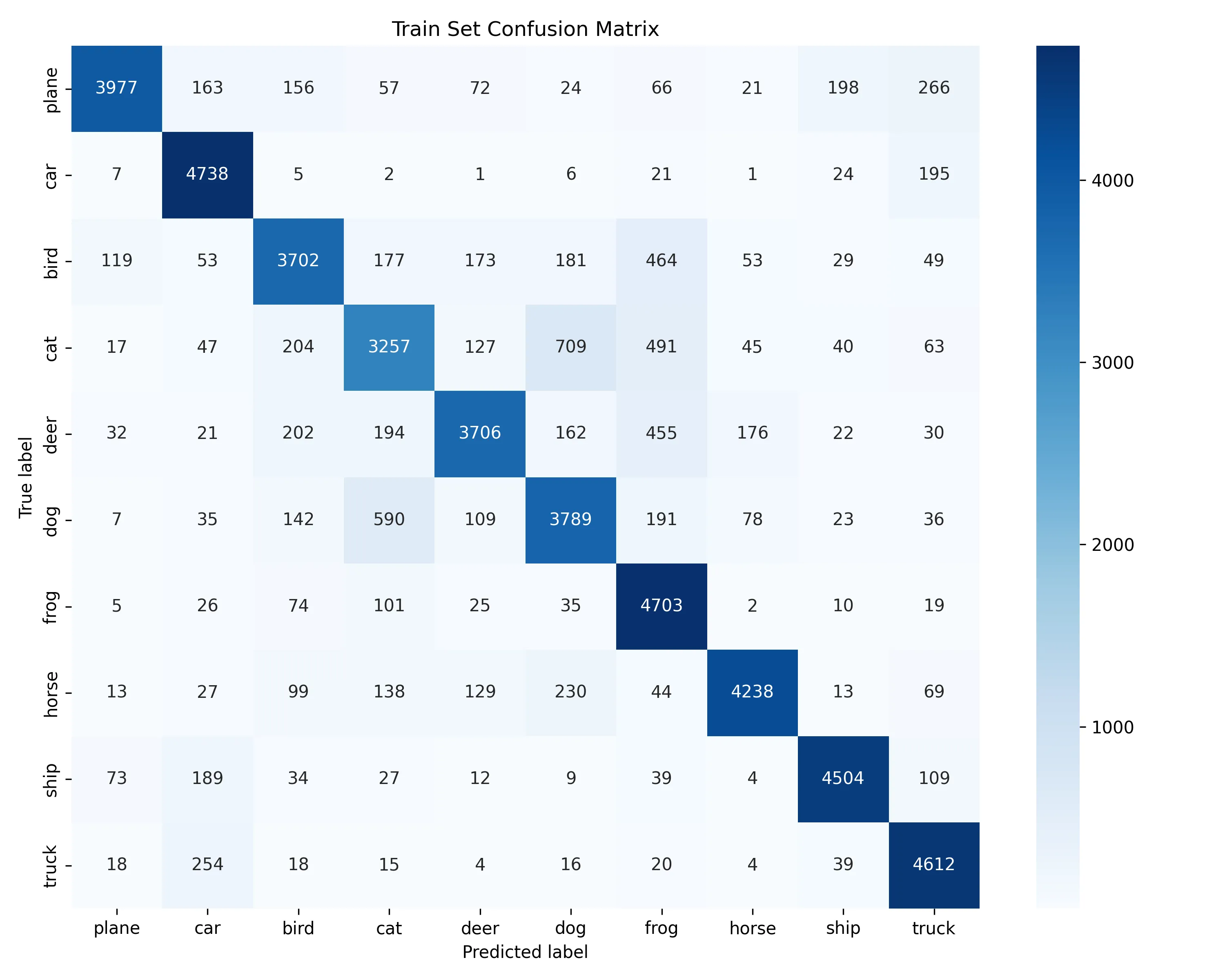

    # 绘制训练集的混淆矩阵
    print('训练集混淆矩阵绘制：')
    train_labels, train_preds = collect_pred_labels(model, trainloader, device)
    cm_train = confusion_matrix(train_labels, train_preds)
    plot_confusion_matrix(cm=cm_train,
                          class_names=classes,
                          title='Train Set Confusion Matrix',
                          img_name='train_set')

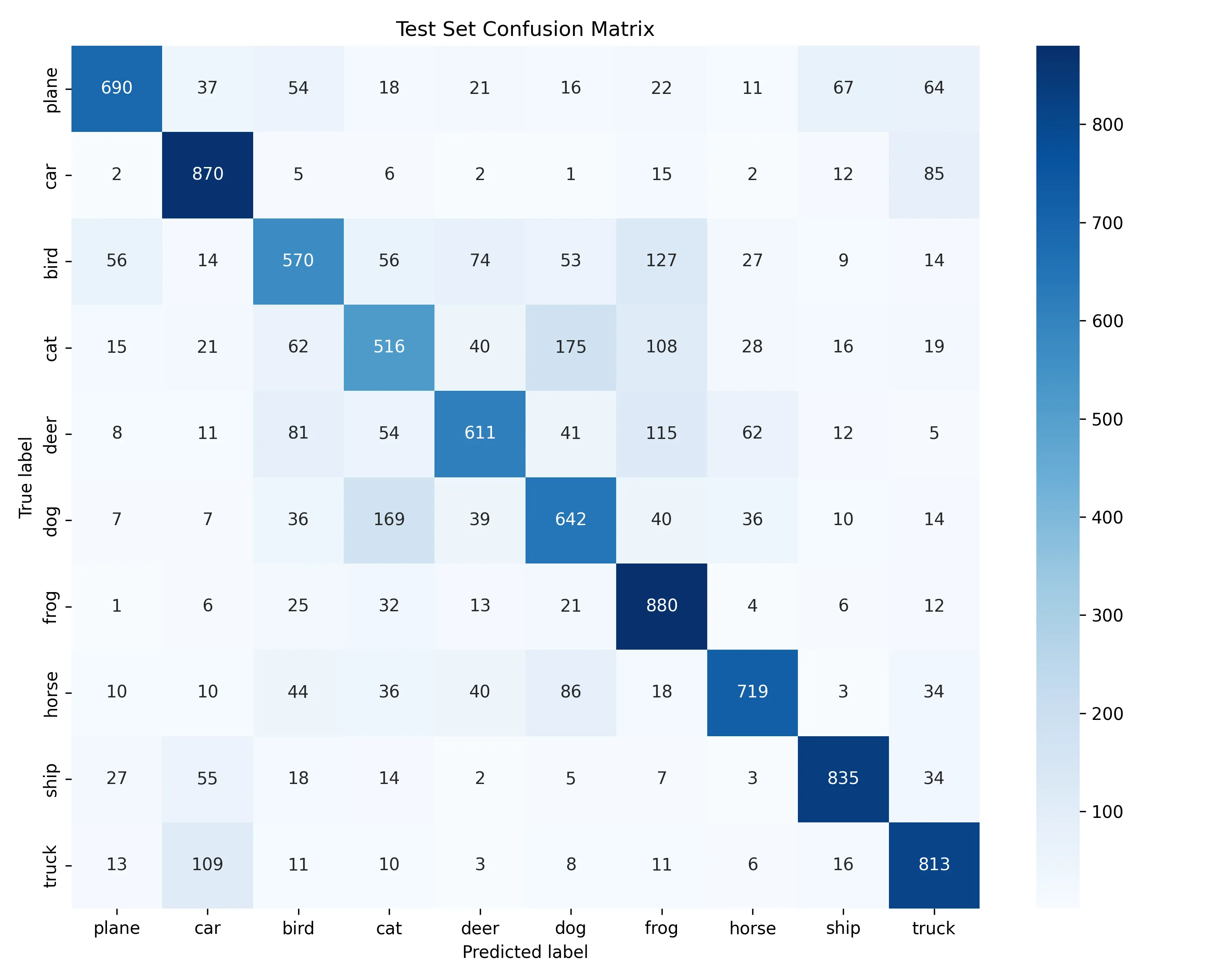

    # 绘制测试集的混淆矩阵
    print('测试集混淆矩阵绘制：')
    test_labels, test_preds = collect_pred_labels(model, testloader, device)
    cm_test = confusion_matrix(test_labels, test_preds)
    plot_confusion_matrix(cm=cm_test,
                          class_names=classes,
                          title='Test Set Confusion Matrix',
                          img_name='test_set')
    # ======================== 绘制混淆矩阵结束  =====================

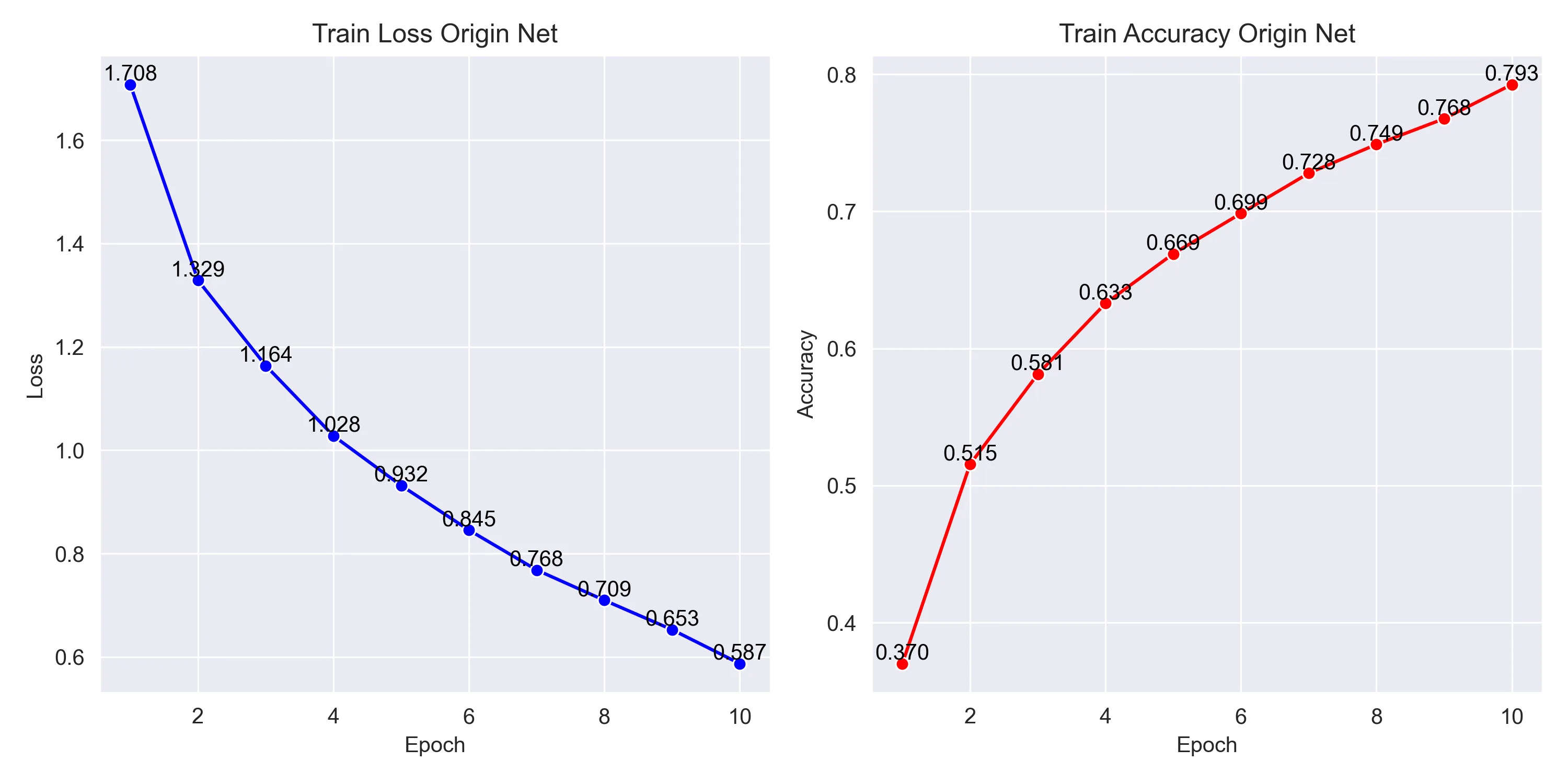

def display_loss_curve(history: dict):
    """
    绘制历史的训练损失和准确率的折线图
    :param history: dict, {"train_loss":[loss values], "train_accuracy":[accuracy values]}
    :return: none
    """
    # 转为 DF，方便送入 seaborn
    df = pd.DataFrame(history)
    df['epoch'] = range(1, len(df)+1)

    sns.set_style('darkgrid')

    fig, ax = plt.subplots(1,2,figsize=(10,5))

    # 绘制训练损失
    sns.lineplot(
        data=df,
        x='epoch',
        y='train_loss',
        ax=ax[0],
        color='b',
        marker='o'
    )
    # 在坐标点上打印文字
    for index,row in df.iterrows():
        ax[0].text(
            row['epoch'],
            row['train_loss'],
            f"{row['train_loss']:.3f}",
            ha='center',
            va='bottom',
            fontsize=10,
            color='k'
        )

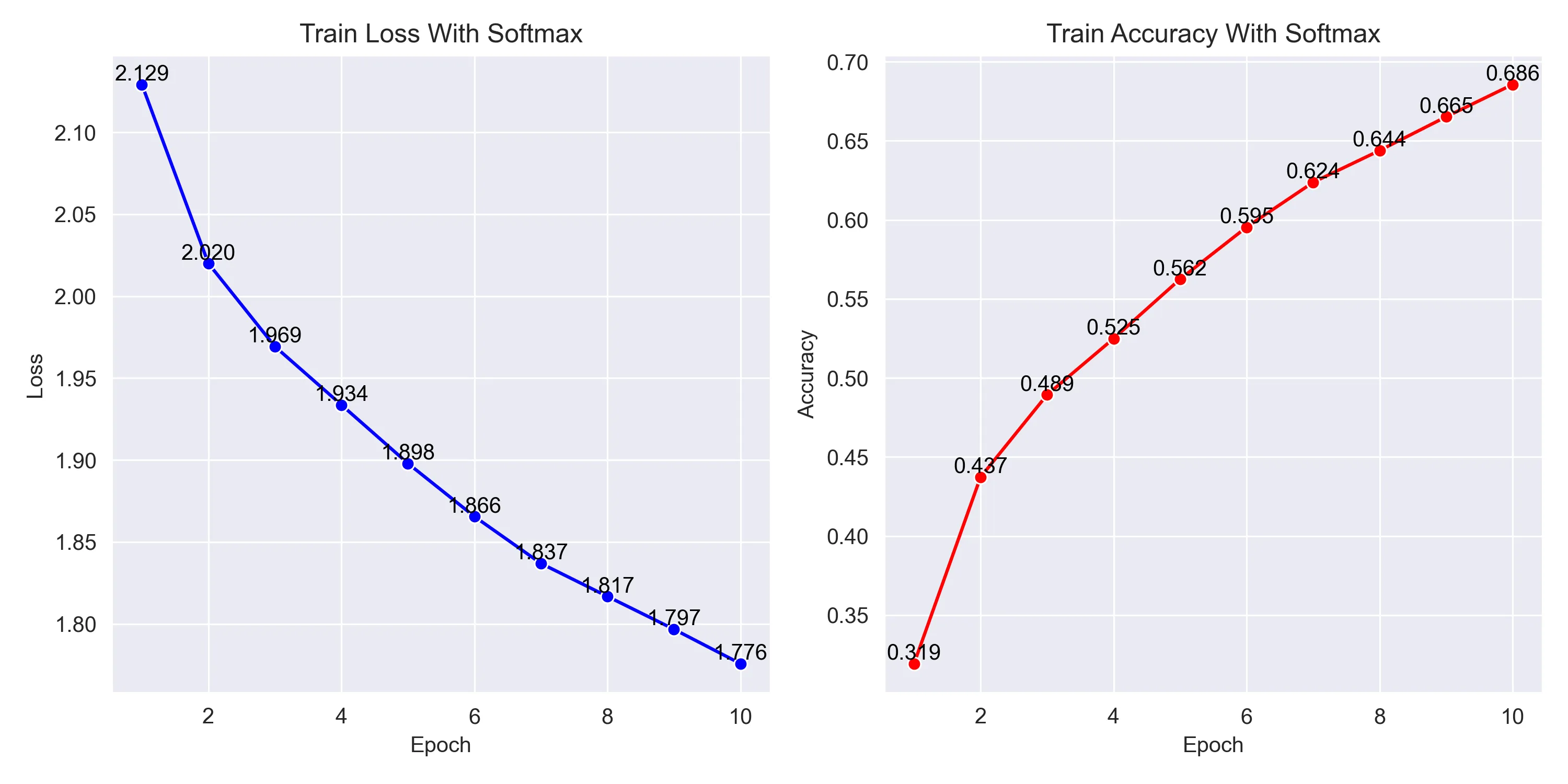

    ax[0].set_title('Train Loss With Softmax')
    ax[0].set_xlabel('Epoch')
    ax[0].set_ylabel('Loss')

    # 绘制训练准确率
    sns.lineplot(
        data=df,
        x='epoch',
        y='train_accuracy',
        color='r',
        marker='o'
    )
    for index,row in df.iterrows():
        ax[1].text(
            row['epoch'],
            row['train_accuracy'],
            f"{row['train_accuracy']:.3f}",
            ha='center',
            va='bottom',
            fontsize=10,
            color='k'
        )

    ax[1].set_title('Train Accuracy With Softmax')
    ax[1].set_xlabel('Epoch')
    ax[1].set_ylabel('Accuracy')

    plt.tight_layout()
    plt.savefig('with_softmax_net_loss.png',dpi=300)
    plt.show()


def valiation(PATH):
    """评估模块"""
    # =============== 评估部分 =====================
    # 简单的图像评估区块
    # 使用已持久化模型进行评估
    model = Net()
    model.load_state_dict(torch.load(PATH, weights_only=True))
    print('加载模型成功')

    # def imshow(img):
    #     img = img / 2 + 0.5  # 反标准化
    #     npimg = img.numpy()
    #     plt.imshow(np.transpose(npimg, (1, 2, 0)))
    #     plt.show()
    #
    # data_iter = iter(testloader)
    # images, labels = next(data_iter)
    #
    # show_images = 8
    # images_to_show = images[:show_images]
    # labels_to_show = labels[:show_images]
    #
    # print('GroundTruth: ', ' '.join(f'{classes[labels_to_show[j]]:5s}' for j in range(show_images)))
    # # 预测标签
    # with torch.no_grad():
    #     outputs = model(images_to_show)
    #     _, predicted = torch.max(outputs, 1)
    # print('Predicted: ', ' '.join(f'{classes[predicted[j]]:5s}' for j in range(show_images)))
    #
    # imshow(torchvision.utils.make_grid(images_to_show))

    # 模型评估区块 (在测试集上评估)
    # def pred_model(model, testloader, loss_function, device):

    device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')

    test_accuracy = pred_model_in_testset(
        model=model,
        testloader=testloader,
        device=device
    )
    print(f'测试集准确率：{test_accuracy * 100:.2f}%')

    # 具体分类评估区块：
    # 在每一个分类上进行评估，观察每一个分类的准确率
    # 从已持久化模型加载模型
    correct_pred = {classname: 0 for classname in classes}
    total_pred = {classname: 0 for classname in classes}

    with torch.no_grad():
        for data in testloader:
            images, labels = data[0].to(device), data[1].to(device)
            outputs = model(images)
            _, predictions = torch.max(outputs, 1)
            # 累加每个类别的准确率计算变量
            for label, prediction in zip(labels, predictions):
                if label == prediction:
                    correct_pred[classes[label]] += 1
                total_pred[classes[label]] += 1

    for classname, correct_count in correct_pred.items():
        accuracy = 100 * float(correct_count) / total_pred[classname]
        print(f'Class: {classname:5s} Accuracy: {accuracy:.1f} %')
    # ==============  评估部分结束 ==================

def train_model(PATH):

    # 训练设备选择区块
    device = torch.device('cuda:0' if torch.cuda.is_available() else 'cpu')
    print(f'选择训练的设备：{device}')

    print(f'开始构建神经网络:')
    model = Net()
    print('神经网络结构：')
    print(model)
    print('神经网络构建完成')

    # 神经网络训练区块
    print('开始训练神经网络：')
    # 1.定义损失函数
    loss_function = nn.CrossEntropyLoss()
    # 2.定义优化器
    optimizer = optim.Adam(model.parameters(), lr=0.001)
    # 3.传入训练函数
    # def train(model, device, trainloader, loss_function, optimizer, epoches):
    # 使用 tensorboard 可视化训练过程
    from torch.utils.tensorboard import SummaryWriter
    writer = SummaryWriter('./logs')
    trained_model,history = train(
        model=model,
        device=device,
        trainloader=trainloader,
        loss_function=loss_function,
        optimizer=optimizer,
        epoches=10,
        writer=writer
    )

    writer.close()
    print('结束Summary的写入')

    # 存储训练数据
    import json

    file_path = 'train_with_softmax.json'
    with open(file_path, 'w') as f:
        json.dump(history, f, indent=4, ensure_ascii=False)
    # 模型持久化区块

    save_model(trained_model,PATH)

if __name__ == '__main__':
    transform = transforms.Compose(
        [transforms.ToTensor(),
         transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))])

    # 超参数定义区块
    batch_size = 256

    # 数据加载区块
    trainset = torchvision.datasets.CIFAR10(root='./data', train=True,
                                            download=True, transform=transform)
    trainloader = torch.utils.data.DataLoader(trainset, batch_size=batch_size,
                                              shuffle=True, num_workers=get_dataloader_workers())

    testset = torchvision.datasets.CIFAR10(root='./data', train=False,
                                           download=True, transform=transform)
    testloader = torch.utils.data.DataLoader(testset, batch_size=batch_size,
                                             shuffle=False, num_workers=get_dataloader_workers())

    classes = ('plane', 'car', 'bird', 'cat',
               'deer', 'dog', 'frog', 'horse', 'ship', 'truck')

    # 模型训练函数
    # train_model(PATH='./CIFAR_with_softmax.pth')

    # 模型预测和验证函数
    # valiation(PATH='./CIFAR_with_softmax.pth')

    # # 损失曲线绘制函数
    # import json
    # file_path = 'train_with_softmax.json'
    # with open(file_path, "r", encoding="utf-8") as f:
    #     history = json.load(f)
    #
    # display_loss_curve(history=history)
